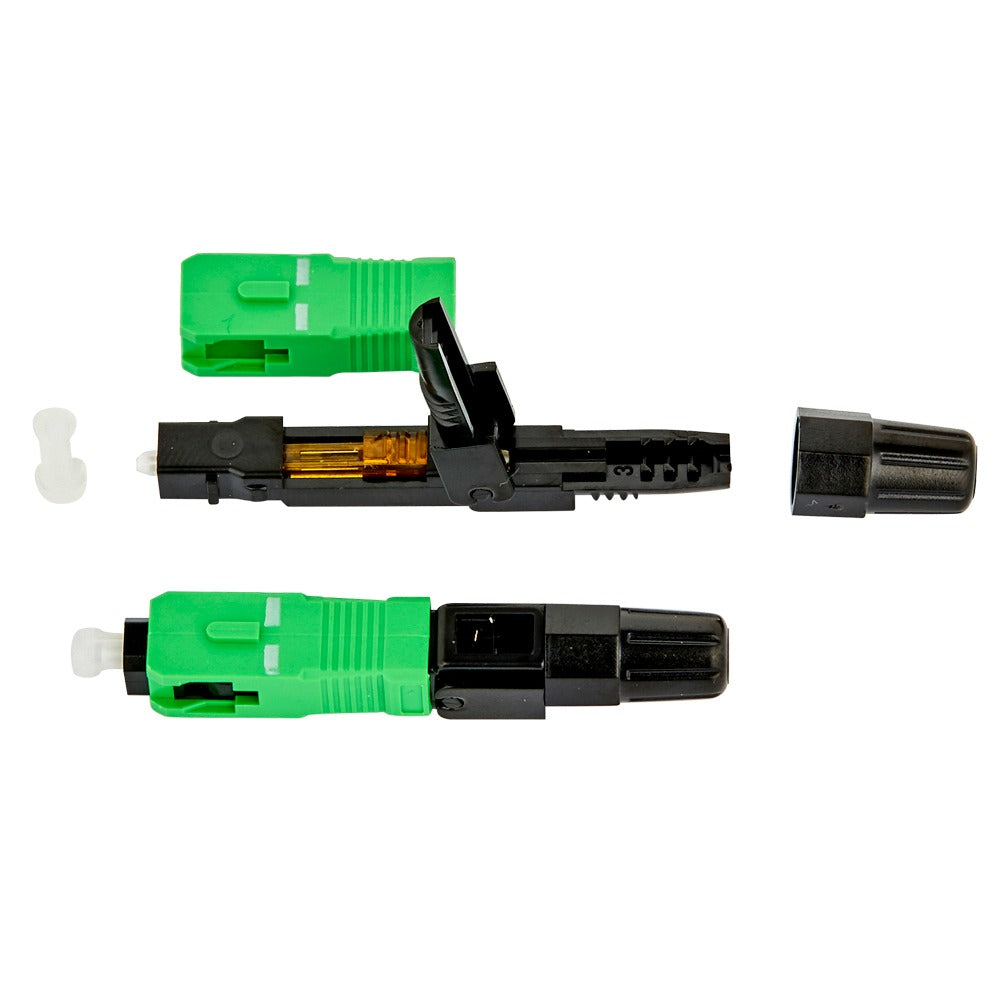

• Two green and black fiber optic connector splices with a small white plastic tool and a black cap, displayed on a clean white background.

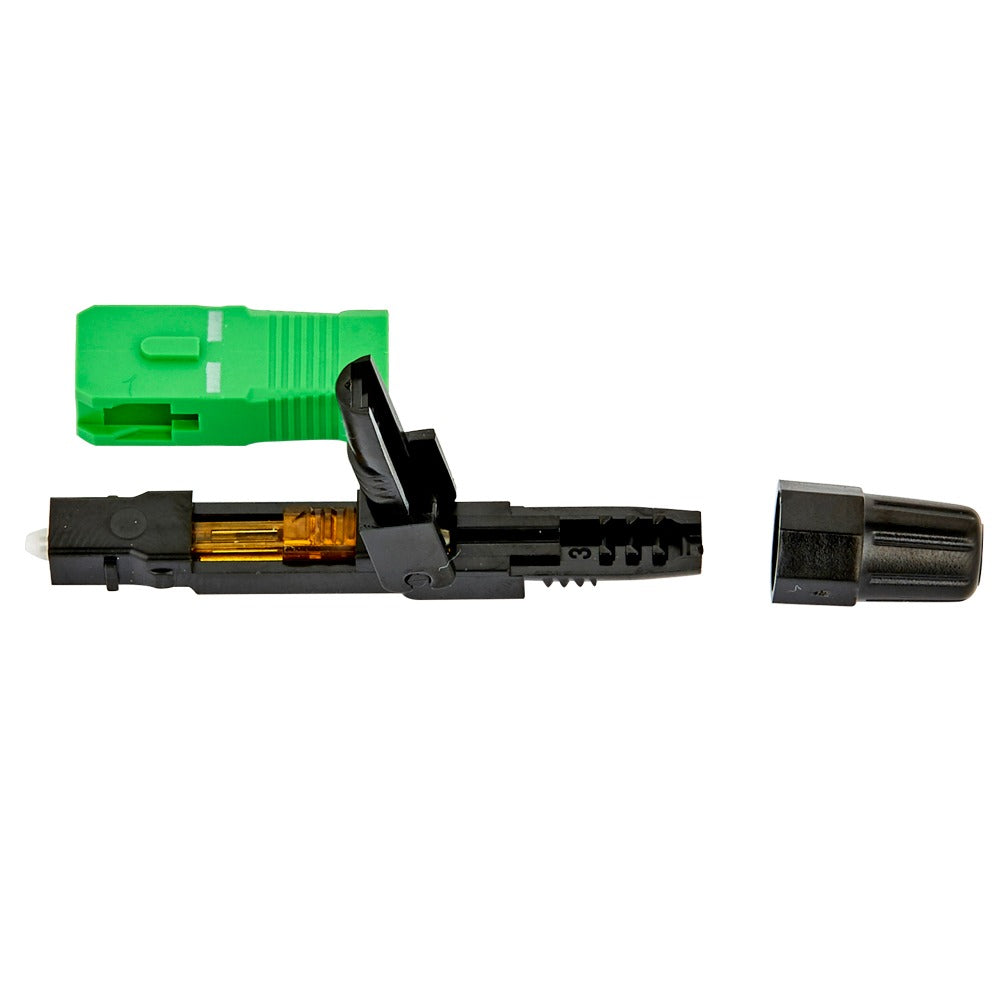

  • A black fiber optic connector tool with a green protective cap and a separate black cap placed beside it on a white background.

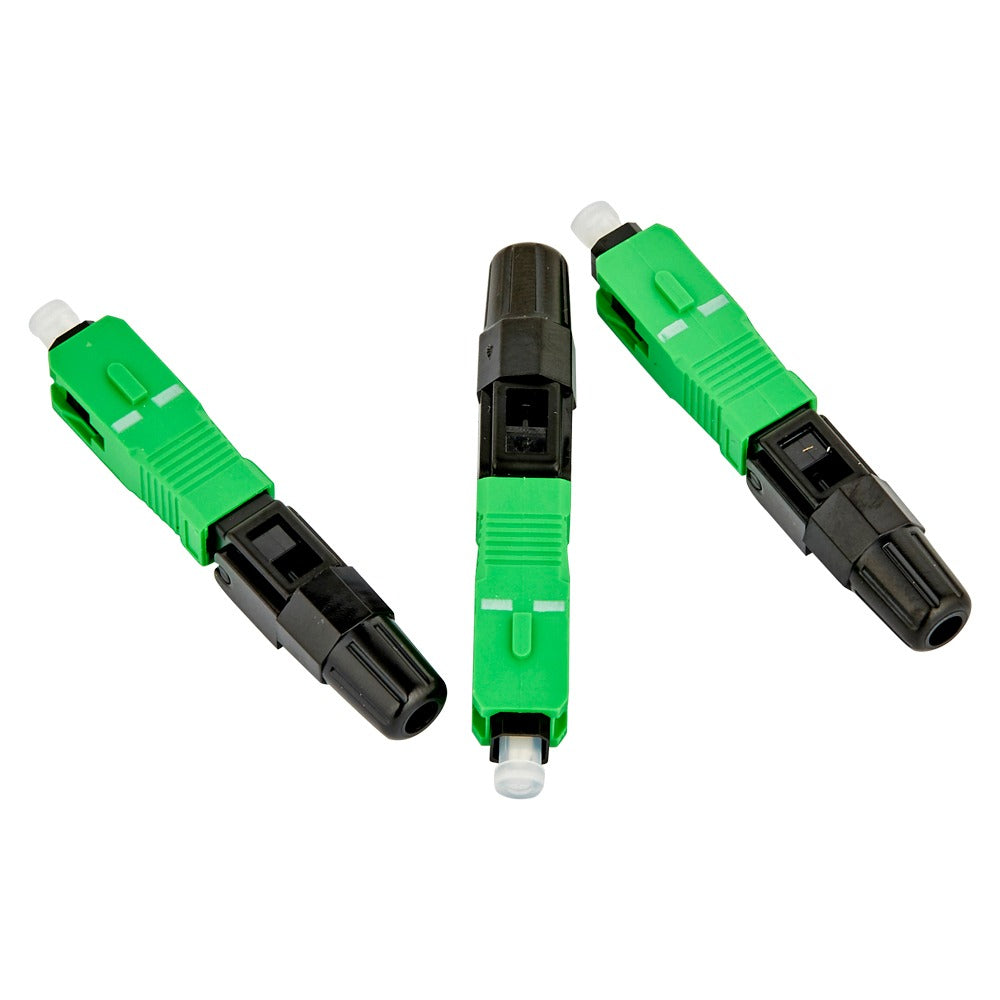

  • Three fiber optic connector adapters with bright green and black bodies, shown on a plain white background.

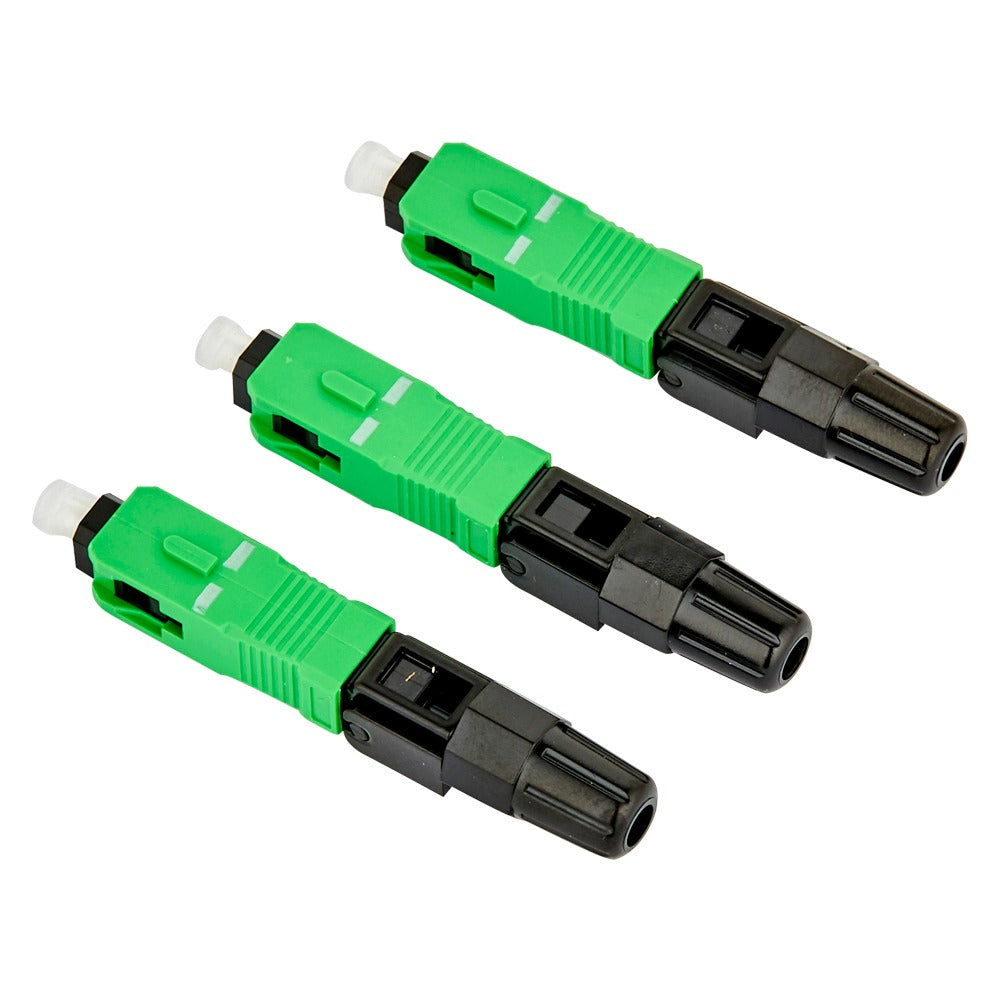

  • Three green and black fiber optic LC to MTRJ adapter connectors arranged diagonally on a plain white background.
1 4

SC/UPC Fast Connector

SC/UPC Fast Connector

R 0.00
R 0.00
Sale Sold out
Taxes included.

Factory pre-polished, field-installable connector for single-mode fibre. The flat-polished ferrule gives 50 dB or better return loss — the right choice for LAN installations and general fibre access networks where APC-grade return loss isn't a specification requirement. No fusion splicer needed; terminate in roughly 90 seconds. Available as a single unit or a box of 10.

View full details
Why it matters

An SC/UPC mechanical fast connector uses the same mechanical clamping system as SC/APC, but with a flat-polished ferrule instead of an angled one. That gives 50 dB or better return loss — sufficient for LAN, access-network and general fibre installations that don't specify APC-grade performance. It's a lower-cost, equally fast option where the project doesn't call for PON-grade return loss specifically.

Why buy from PGS

PGS carries SC/UPC in bulk at wholesale pricing, with stock on hand for structured cabling and LAN/WAN programmes that don't want to wait on international shipping. Available as a single connector for one-off repairs, or a box of 10 at a per-unit discount for larger installation runs. Contact us for current bulk pricing and lead times

Specifications & Overview of SC/UPC Fast Connector
Connector Type SC Mechanical Fast Connector
Polish / Finish SC/UPC (Ultra Physical Contact)
Model FB-04-16
Connector Size 52 mm
Fibre Type Single-mode (SMF) 9/125 µm
Bare Fibre Diameter 125 µm
Termination Method Mechanical alignment — no fusion splicing required
Insertion Loss ≤ 0.3 dB typical, 0.5 dB maximum
Return Loss (SC/UPC) 50 dB or better
Operating Temperature -40°C to +75°C (model dependent)
Cable Compatibility 3.0×2.0 mm drop cable, 2.0 mm, 3.0 mm, FTTH drop cable
Applications & Compatibility

Access network and LAN installations — LAN, WAN and broadband infrastructure projects where mechanical splice connectors make more practical sense than bringing fusion equipment to every termination point. Field repairs — same fast, tool-only termination benefit as APC, for networks that don't require PON-grade return loss. General fibre access networks where APC-grade return loss isn't specified.

Why Choose PGS & FAQs
What's the difference between this and SC/APC?
Ferrule polish angle. UPC is flat-polished (50 dB return loss); APC is angled (55 dB). UPC suits LAN/general access; APC is required for PON/FTTH.
Can I use SC/UPC for an FTTH project?
Confirm your project's spec first — most FTTH/PON deployments require APC-grade return loss, which UPC doesn't meet.
What tools are needed to install it?
A fibre stripper and a fibre cleaver only — no fusion splicer, polishing equipment, or epoxy.
Is this sold individually or in bulk?
Both — buy a single connector for a small job, or a box of 10 at a discounted per-unit price for larger orders.
