MTP 24-fibre OS2 cassette single-mode fiber

MTP 24-fibre OS2 cassette single-mode fiber

R 0.00
R 0.00
Sale Sold out
Taxes included.

The 24-Core MPO/MTP Cassette OS2 is a factory-loaded, plug-and-play fibre patch module for high-density data centre and enterprise network cabling. PGS supplies MPO/MTP 24-fibre cassettes in South Africa at wholesale pricing for data centre contractors, systems integrators, network infrastructure teams and distributors.

If you're looking for a 24-core MPO cassette OS2 supplier in South Africa , contact PGS for pricing and quantities.

What Is an MPO/MTP Cassette?

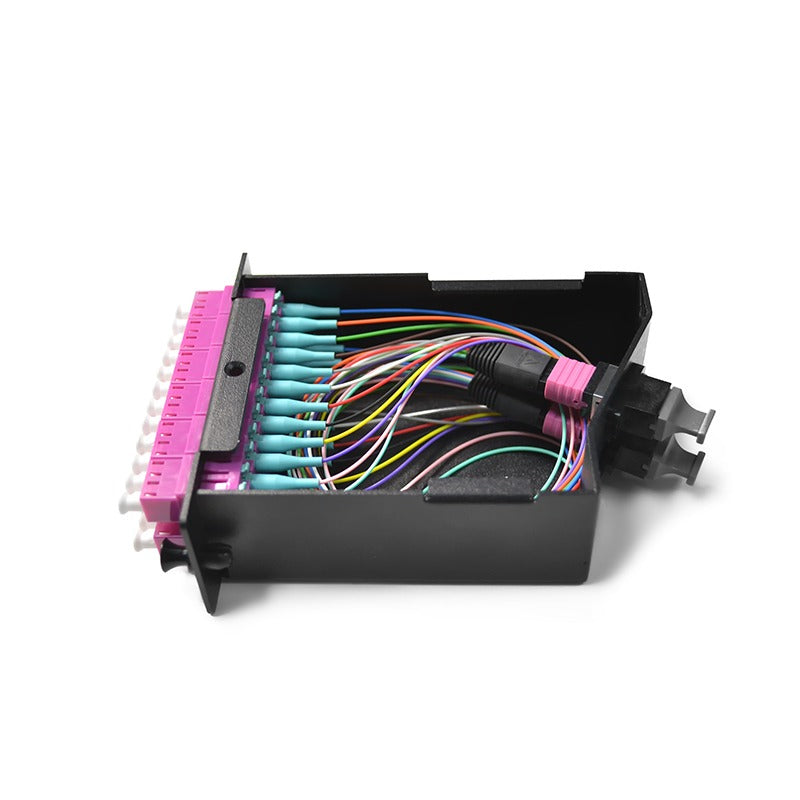

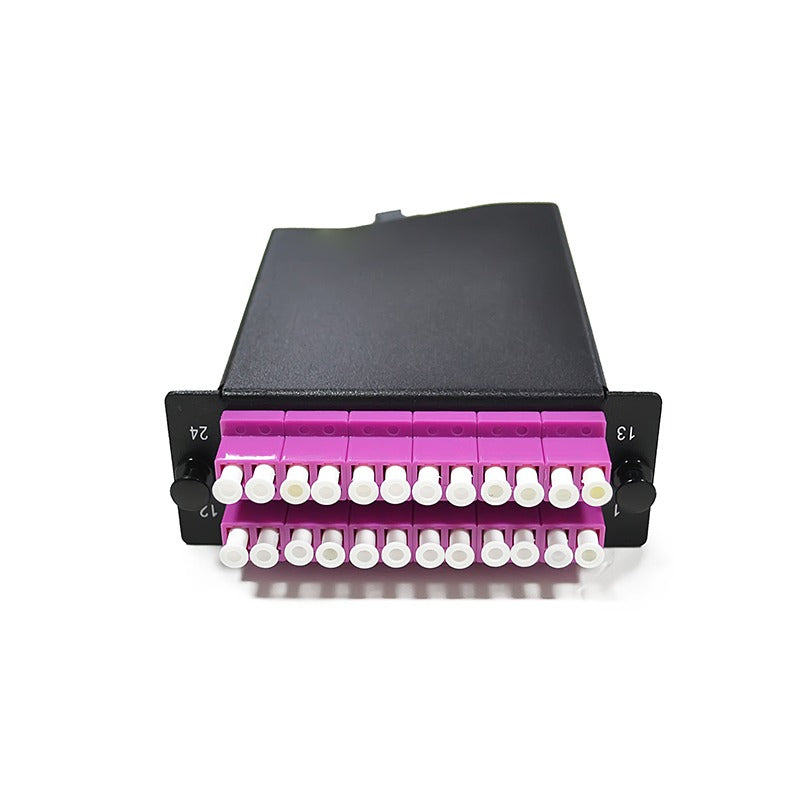

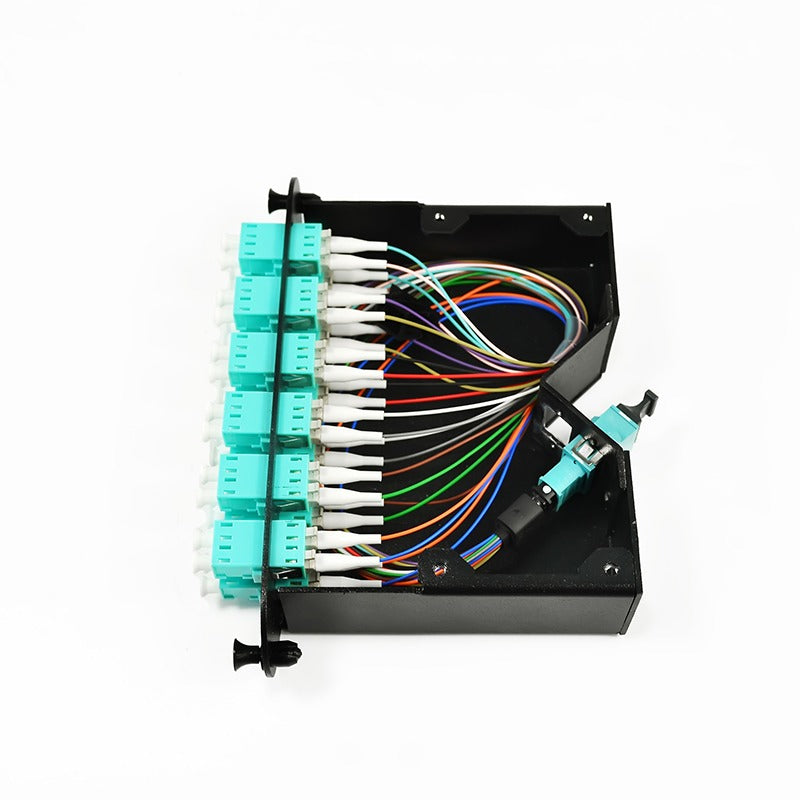

A MPO/MTP 24-fibre cassette is a compact housing module that converts one MPO/MTP multi-fibre connector at the rear into individual LC or SC ports at the front. Slide the cassette into a compatible patch panel chassis and it provides a clean, organised transition between high-density backbone connections and the individual connections your equipment needs.

The 24-core version terminates all 24 fibres from a single MPO/MTP backbone interface into 24 individual ports at the front. OS2 specifies that the fibre inside is singlemode glass — the correct standard for data centre backbone links, long-distance runs and high-bandwidth applications where multimode distance limits are a constraint.

Factory-loaded means the cassette arrives ready to install. No field termination, no splicing, no polishing. That's what makes a singlemode MTP cassette the preferred choice in wholesale South African data centre deployments — faster installation and consistent optical performance out of the box.

View full details
Why it matters

A 12-core MPO cassette uses one MPO backbone connection to provide 12 individual front-panel ports. A 24-port fibre breakout cassette delivers twice the port density from a single backbone connector — 24 individual ports in the same 1U form factor.

For data centre environments where rack space is expensive and port counts keep growing, that density difference is significant. One 24-core cassette replaces two 12-core cassettes for the same port count, which means fewer trunk cables in the backbone and a cleaner, more manageable architecture overall. Any MPO patch module for data centre use should be specified at 24 cores where the backbone cable supports it.

Why buy from PGS

PGS is an MPO cassette supplier for South Africa and Africa , supplying 24-core OS2 cassettes at wholesale pricing for data centre professionals, systems integrators and distributors. Factory-loaded stock means faster installation and consistent performance on arrival. Contact us with your quantities and chassis specifications and we'll get back to you with pricing.

Specifications & Overview of MTP 24-fibre OS2 cassette single-mode fiber
Product Type Fully loaded MPO/MTP fibre cassette module
Fibre Standard OS2 singlemode
Fibre Capacity 24 fibre cores

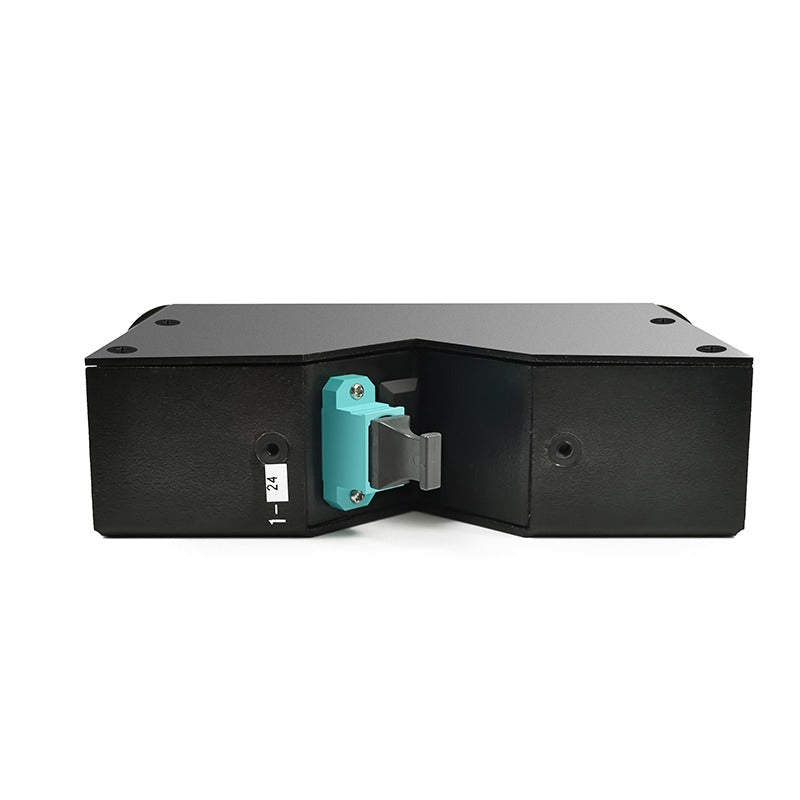

Backbone Interface MPO/MTP multi-fibre connector (rear)
Front Connectivity Individual fibre adapter ports for equipment patching
Application Data centres, enterprise networks, FTTx, structured cabling
Installation Factory loaded — integrates into compatible patch panel chassis
Key Benefit High-density 24-port breakout from a single MPO backbone connection
MTP/MPO MTP
Gender Male
Guide pins With guide pins / pinned
Polarity Type A
MTP end-face APC

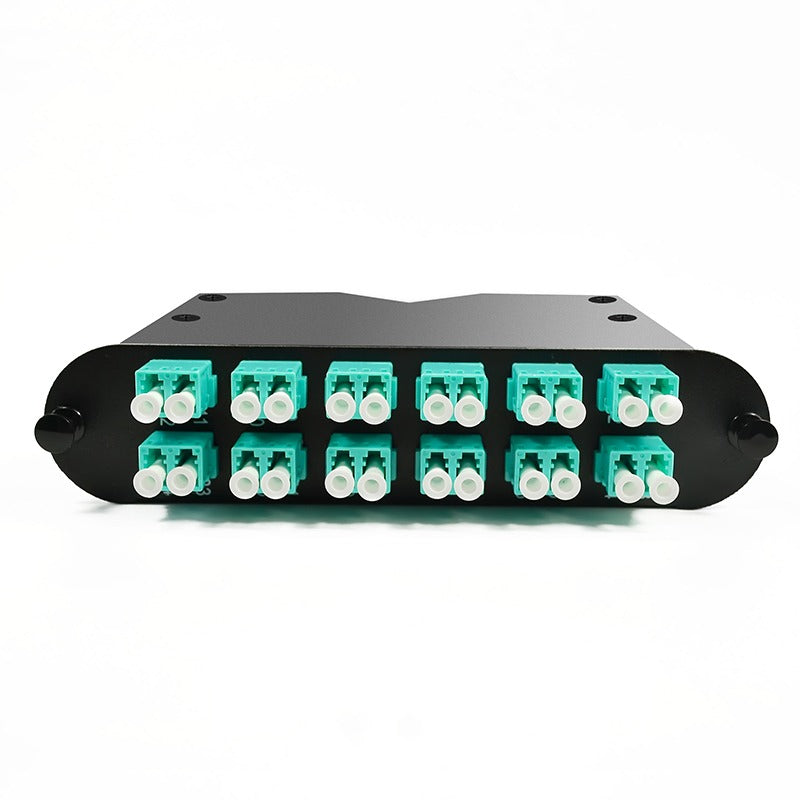

Front interface 12 × LC Duplex
LC end-face UPC
Fibre OS2 single-mode
Fibre count 24
Applications & Compatibility

Installation: Stripping, preparing and routing fibre ends for connector termination or splicing. The right tools are what make a clean termination possible consistently — poor preparation causes signal loss that's hard to trace back to source.

Maintenance: Inspecting and cleaning connectors, checking for contamination or damage, and servicing live fibre links. A proper fibre cleaning inspection kit is not optional for any team doing regular maintenance on fibre infrastructure.

Troubleshooting and fault restoration: Identifying faults, preparing replacement sections and re-terminating fibre during emergency work. Speed matters in these situations, and an organised kit means no time lost looking for a specific tool.

Why Choose PGS & FAQs
What does PGS supply as a fibre optic and solar accessories supplier in South Africa?
PGS is a fibre optic and solar accessories supplier in South Africa stocking SC/APC and SC/UPC fast connectors, fibre optic tool kits, 24-core MPO/MTP OS2 cassettes, SFP transceiver cleaner pens, and solar accessories. The product range is focused on the fibre optic and solar industries, with new products being added.
Do you supply in bulk at wholesale prices?
Yes. Our pricing is designed for bulk procurement. We supply businesses, contractors, distributors and project operators. As a wholesale fibre supplier in Johannesburg, South Africa with national and international reach, we're structured for repeat bulk orders.
Can I order from outside South Africa?
Yes. We supply customers across Africa and internationally. We export fibre optic products across Africa and can discuss supply terms for your region directly.
